Drive In Pallet Rack in Wilmington, NC

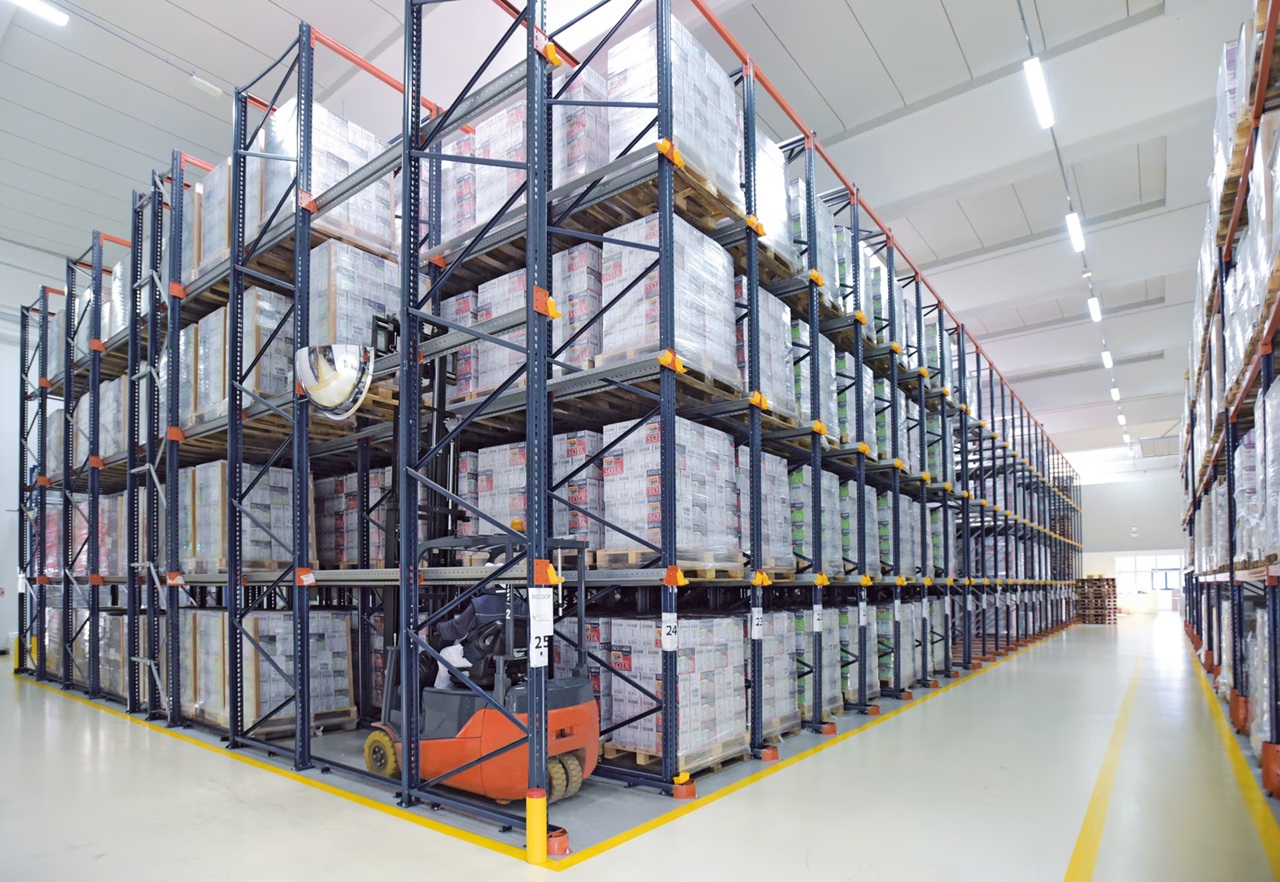

Drive in pallet rack lets the forklift enter a lane and place pallets on side rails. Grocery and frozen-food operations planning bulk storage near the Port of Wilmington, Carolina Beach Rd and River Rd can trade individual pallet access for deeper lanes holding a few SKUs in quantity.
Drive in warehouse racking deserves a close comparison where Wilmington's cooler and freezer demand makes refrigerated space expensive. For layouts in Pender Commerce Park, Leland or Navassa, the deciding inputs are pallets per SKU, forklift dimensions and load rotation—not the building footprint alone.
Drive In Rack for Bulk Frozen Inventory
Deep lanes fit repeated loads of a small item range. Match lane depth to quantities that will clear together so partial lanes do not trap space behind a few remaining pallets.
Single-entry lanes normally operate last-in, first-out. If each pallet needs independent access, compare a selective arrangement before committing to deep storage.
Rail Support and Forklift Clearance
Pallet fit
Measure pallet width, depth, bottom boards and load overhang. Rail spacing must support the pallet while leaving the specified operating clearance.
Truck envelope
Check mast width, overhead guard height and the loaded truck's clearance inside the lane. Include the pallet and load, not just the truck body.
Lane and level loads
Use the heaviest pallet, pallets per lane and level spacing to specify rails and frames. Confirm the loaded lift height at the deepest placement.
Drive Through Rack and the Building Layout
A drive through rack has access at both ends and can support first-in, first-out handling when loading and retrieval follow that sequence. It needs working space at both faces, which belongs in the position-count comparison.
We draw lanes around columns and staging, then coordinate experienced installation crews we schedule and manage. For refrigerated rooms, access windows and the operating temperature are part of installation planning.
Compare Bulk Lane Arrangements
Send the basics and we will come back with a layout and pricing. Prefer to talk? Call (910) 597-4473.
What's Included:
- Free warehouse consultation
- CAD layout drawings
- Itemized project quote
- Rack type recommendations
- Installation timeline
Drive In Pallet Rack FAQs
Where We Install Drive-In Rack
Delivery and installation across the Cape Fear region and the I-40 and I-95 corridors.
Other Rack Systems We Supply
Pallet Rack
Direct access to each pallet, with beam levels matched to your loads and lift truck.
Pushback Rack
Two to six pallets per lane, loaded from one aisle with the forklift outside the rack.
Pallet Flow Rack
Gravity-fed pallet lanes with separate loading and retrieval faces for FIFO rotation.
Cantilever Rack
Open-front arms support lumber, pipe and long building-material bundles.
Carton Flow Rack
Cases advance to a fixed pick face while replenishment loads from the rear.
